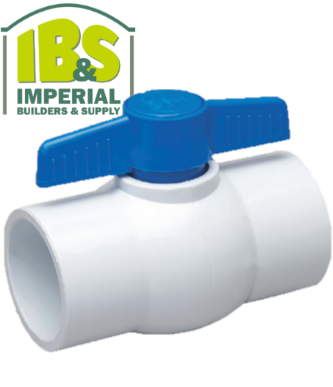

PVC Schedule 80 Ball Valve

$1.90$62.55

  • Heavy duty thermoplastic white PVC (Type 1, Grade 1)
  • Materials meet NSF standards
  • Meets ASTM 2467 Schedule 80
  • White body, Blue handle
  • Available with Teflon® or EPDM seats providing excellent chemical
    resistance
  • EPDM “o” ring stem seal
  • 150 PSI working pressure at 73ºF water, non-shock
  • Maintenance free compact design
  • Severe shock loads and misalignment stress are absorbed by the valve
    body, not the ball & seat, minimizing the chance of uneven wear & leakage
  • Available in Slip x Slip and Thread x Thread (up to 4″)



Clear

SKU: PVC-BALL-VALVES Categories: , Tags: , , , , , , , ,
  • Heavy duty thermoplastic white PVC (Type 1, Grade 1)
  • Materials meet NSF standards
  • Meets ASTM 2467 Schedule 80
  • White body, Blue handle
  • Available with Teflon® or EPDM seats providing excellent chemical
    resistance
  • EPDM “o” ring stem seal
  • 150 PSI working pressure at 73ºF water, non-shock
  • Maintenance free compact design
  • Severe shock loads and misalignment stress are absorbed by the valve
    body, not the ball & seat, minimizing the chance of uneven wear & leakage
  • Available in Slip x Slip and Thread x Thread (up to 4″)

BALL VALVE SPECS:http://www.hitproductscorp.com/products/accessories/ball_valves.pdf



Additional information

Weight 1 lbs
Dimensions 3 × 2 × 2 in
Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

PRICE/EA, Single or Box

Single, Single, Single, Single, Single, Single, Single, Single, Single, Box (10), Box (10), Box (20), Box (20), Box (20), Box (10), Box (5), Box (5), Box (4)

Fitting

Slip, Threaded
